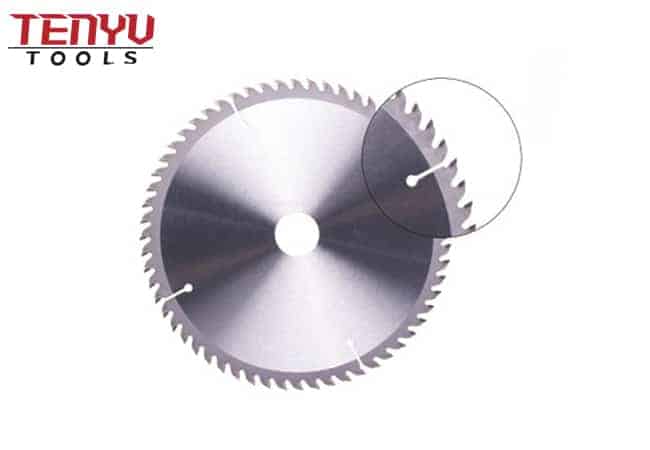

7 Inch 60 Teeth Tungsten Carbide Circular Saw Blade for Wood
- 7-inch cutting diameter with 60 teeth
- Tungsten carbide teeth make the wood cutting more efficiently
- The positive cutting angle provides fast and efficient removal of chips and swarf
- Fast cutting without burrs and loud noise
- Can use with various machines, circular saw, table saw, etc
- Product Details
- Factory
- Material
|
Production Description
|
||||
|
More Choice For You: Home > TCT Circular Saw Blade > For Wood
|
||||
|
Product Name
|
General Purpose TCT Circular Saw Wood Blade for Wood Cutting
|
|||
|
Material
|
Teeth Material: Tungsten Carbide
Body Material: 65Mn Steel
|
|||
|
Progress
|
Automatic Welded
|
|||
|
Teeth Type
|
ATB Teeth (FT Teeth, Trapezoid Teeth, ATB Teeth with Anti-kick Back, ATBR Teeth are available)
|
|||
|
Arbor Hole Size
|
All size is available upon request,such as 5/8”, 1” 20mm, 22.23mm, 25mm, 30mm, 35mm…etc
|
|||
|
Teeth Design
|
Teeth Number ould be adjusted upon request; Hook angle could be adjusted upon request
|
|||
|
Package
|
One piece in one PVC double blister, paper box or PVC Skin Card
|
|||
|
Features
|
1. Made with durable steel with tungsten carbide tipped.
2. High quality carbide coated tips provide hardness, durability and toughness.
3. Easy to install and use.
4. Ideal for all purpose including softwood, hardwood, lumber, plywood, etc.
5. For use on Miter Saws, Circular Saws, Table Saws, Hand Saws and Chop Saws.
|
|||
| Product Size | |||||
| Diameter | Kerf | Plant Thickness | Arbor Hole Size | Teeth Number | |
| Inch | mm | mm | mm | mm | |
| 5″ | 125 | 2.6 | 1.6 | 20/25.4 | 24,30,36 |
| 6″ | 150 | 2.6 | 1.6 | 20/25.4 | 28,30,36,42,48 |
| 7″ | 180 | 2.6, 2.8 | 1.6, 1.8 | 20/25.4 | 32,36,42,48,54,56 |
| 8″ | 200 | 2.6, 2.8 | 1.6, 1.8 | 20/25.4 | 36,40,48,56,64 |
| 9″ | 230 | 2.8 | 1.8 | 20/25.4 | 40,48,54,60,64,66,72 |
| 10″ | 250 | 3 | 2 | 20/25.4 | 48,50,60,64,72,80 |
| 11″ | 270 | 3 | 2 | 25.4/30 | 48,50,60,64,72,80 |
| 12″ | 300 | 3.2 | 2.2 | 25.4/30 | 60,72,80,84,96 |
| 13″ | 330 | 3.2 | 2.2 | 25.4/30 | 60,72,84,96,100 |
| 14″ | 350 | 3.2 | 2.2 | 25.4/30 | 72,84,98,100,108 |
| 16″ | 400 | 3.5 | 2.5 | 25.4/30 | 80,96,112,120 |
| 18″ | 450 | 3.5 | 2.5 | 25.4/30 | 90,108,126,140 |
| 20″ | 500 | 3.5, 3.8 | 2.5, 2.8 | 25.4/30 | 100,120,140 |
| 22″ | 550 | 3.8 | 2.8 | 25.4/30 | 110,120,144 |
| 24″ | 600 | 4 | 3 | 25.4/30 | 120,144,150 |
| 26″ | 650 | 4 | 3 | 25.4/30 | 120,140,150 |
| 28″ | 700 | 4.2 | 3.2 | 25.4/30 | 120,140,150 |
| 30″ | 750 | 4.2, 4.6 | 3.2, 3.6 | 25.4/30 | 120,140,150 |
Factory
1.Tenyu TCT Circular Saw Blades are designed as ferrous metal cutting blades that suitable for cutting steel and iron profiles, such as steel.
2. Flat-top (FT) teeth cut the entire kerf using both sides to remove material quickly and efficiently without creating too many chips or splinters.
3. Tungsten carbide teeth provide excellent wear and heat resistance. the positive cutting angle which provides fast and efficient removal of chips and swarf.
4. Fully hardened steel blade body – delivers accuracy and resists bending and deflection for true cuts.
5. Heat expansion slots allow the blade rim to expand and contract without warping for straight and accurate cuts.
6.Equipment used with Circular Saw, Miter Saw, Table Saw, Radial Arm Saw, etc.
How to Use:
■ Follow carefully the instructions given in the machine handbook.
■ Never fit a diamond dish/cup wheel which is too loose or too tight on the flange.
■ Tighten only with the tool supplied with the machine.
■ Ensure the wheel is properly gripped to prevent slippage, but do not tighten with excessive force. Never use a hammer.
■ Keep flanges and screw threads clean and free of burrs and rust.
■ Replace distorted or damaged flanges before fitting the wheel.
For your Safety:
We recommends the use of following personal protective equipment:
■ Eye protection
■ Ear protection (ear sets)
■ Hand protection (gloves)
■ Lung protection (dust mask, also called respirator)
Important Note:
Never remove the protective machine guard and make sure it is properly adjusted to deflect debris away from you.
Ensure that no other person is at risk, especially near the machine while working.
