Step Drills?

I’ve been working with tools for quite some time now, and I’ve learned a thing or two about making the job easier. Ever feel like you’re constantly switching drill bits to make different sized holes?

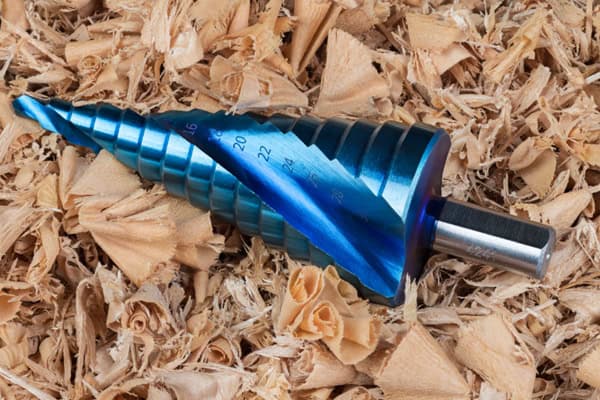

Step drills¹ are your answer! These bits can drill multiple sized holes² with a single bit, saving you time and hassle. They’re especially useful for sheet metal, plastics, and other thin materials.

Ready to dive deeper? Let’s explore the key features, benefits, and how to use step drill bits effectively. I will also share some of my personal insights!

Five Key Features of a Step Drill and Its Applications

Are you curious about what makes step drills stand out from regular drill bits?

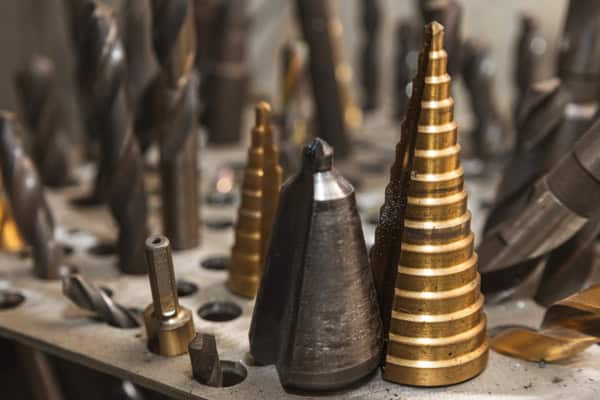

Step drill bits have a cone shape³ with multiple steps, each a different diameter. This design lets you drill various hole sizes without changing bits. They’re great for sheet metal, plastics, and other thin stuff, creating clean, round holes⁴.

Understanding the Features

Let’s break down the key features of a step drill:

• Stepped Design: Each step drills a different size hole. This eliminates the need to swap bits, saving time.
• Material: Usually made from high-speed steel (HSS), sometimes with coatings like titanium nitride for longer life and smoother drilling.
• Flute Design: Step drills come with spiral or straight flutes (grooves). Spiral flutes remove chips better, extending the bit’s life. I’ve noticed that spiral flutes really do make a difference when drilling thicker materials.
• Point Type: Many step drills have a split-point tip that helps center the bit, preventing it from "walking" or wandering, especially on metal.
• Shank Type: Step drills often have a three-flatted shank for better grip in the drill chuck, preventing slippage.

Applications

Step drills are versatile and have many uses:

Application	Description
Sheet Metal Work	Ideal for drilling different sized holes in sheet metal.
Electrical Work	Perfect for making holes in enclosures and panels for running wires and installing components.
DIY Projects	Great for any project where you need multiple hole sizes in thin materials, such as furniture building or custom projects.
Deburring	Step drills automatically deburr holes as they drill, saving extra time. This feature alone makes them worth it for many jobs!
Working with Plastics and PVC	Step drills create clean holes in plastics and PVC without cracking. The lower cut angle is especially useful for preventing damage.

From my experience, having a good set of step drills can significantly speed up projects. I remember one time when I had to install multiple electrical boxes. The step drill made quick work of creating the different sized holes needed, and I didn’t have to switch bits once!

Pros and Cons of Step Drill Bits

Are step drill bits the right choice for your project? It’s important to know their pros and cons.

Step drill bits are great for making different sized holes in thin stuff because you don’t need to switch bits. But, they aren’t good for thick materials⁵, and they can be more expensive than regular drill bits⁶.

Advantages

• Versatility: One bit can drill multiple hole sizes.
• Efficiency: Reduces time spent changing bits.
• Clean Holes: Creates smooth, round holes, especially in sheet metal.
• Deburring: Many step drills automatically deburr holes as you drill.
• Reduced Walking: The step drill’s point helps prevent the bit from wandering.

Disadvantages

• Limited Thickness: Step drills are best for thin materials (usually under 1/4 inch).
• Cost: They can be more expensive than standard drill bits.
• Sharpening: Step drill bits can be difficult to sharpen.
• Damage: If one step is damaged, the whole bit may become unusable beyond that point.
• Not for Deep Holes: Step drills are designed for drilling through the material, not creating deep holes of a consistent diameter.

I’ve found that the key to getting the most out of step drill bits is to use them for the right applications. If you’re working with thick steel, a regular drill bit is better. But, for thin materials and multiple hole sizes, step drills are the way to go.

One thing I’ve learned is that it’s worth investing in good quality step drill bits. Cheaper sets might dull quickly or not cut as cleanly, which can end up costing you more time and frustration in the long run.

How to Use Step Drill Bits: A Comprehensive Guide

Using step drill bits properly can improve the quality of your work and extend the life of the bits.

To use a step drill bit, secure your material, mark your hole, and drill slowly with even pressure. Use cutting oil⁷ on metal, and wear safety glasses⁸. Let the bit do the work!

Step-by-Step Instructions

1. Secure the Material: Make sure the material you’re drilling is held firmly in place with clamps or a vise to prevent movement.
2. Mark the Hole: Use a center punch to create a starting point. This helps the bit stay in place and prevents it from wandering.
3. Choose the Right Speed: Use a slow to moderate speed. High speeds can create too much heat and damage the bit and material.
4. Apply Cutting Oil (for Metal): When drilling metal, use cutting oil to lubricate the bit and reduce heat. This extends the life of the bit and creates a cleaner hole.
5. Drill with Consistent Pressure: Apply steady, even pressure as you drill. Let the bit do the work. Avoid forcing the bit, as this can cause it to break or bind.
6. Monitor Hole Size: Watch the steps on the bit to make sure you’re drilling to the correct diameter.
7. Deburr (if needed): Many step drills deburr holes as they drill, but if needed, you can use a deburring tool to clean up any sharp edges.
8. Clean the Bit: After use, clean the bit with a wire brush to remove any debris.

Tips and Tricks

• Start with a Pilot Hole: While not always needed, a pilot hole can help guide the step drill, especially on harder materials.
• Use a Drill Press: For greater accuracy and control, use a drill press instead of a handheld drill.
• Keep the Bit Cool: If the bit gets too hot, stop drilling and let it cool down. Overheating can dull the bit and damage the material.
• Wear Safety Gear: Always wear safety glasses to protect your eyes from flying debris. Gloves can also help improve your grip and protect your hands.

I remember when I first started using step drills, I tried to rush the process and ended up breaking a bit. I quickly learned that patience and consistent pressure are key. Now, I always take my time and let the bit do the work, and I get much better results.

Drill Thin Metal Using Stepdrills

Can you really drill thin metal without making a mess?

Yes! Step drills are perfect for drilling thin metal. They make clean, round holes without deforming the metal. Use cutting oil, go slow, and secure the metal.

Why Step Drills Are Ideal for Thin Metal

• Clean Holes: Step drills create round, clean holes without the jagged edges that twist drill bits can leave behind.
• No Walking: The step drill’s design helps prevent the bit from wandering, which is especially important on thin metal.
• Reduced Deformation: Step drills minimize the risk of deforming or bending the metal as you drill.
• Multiple Sizes: You can drill different sized holes with a single bit, which is convenient for projects that require various fasteners or fittings.
• Deburring: Step drills often deburr the hole as you drill, saving you a step and leaving a smooth finish.

Step-by-Step Guide for Drilling Thin Metal

1. Secure the Metal: Clamp the metal firmly to a solid surface. This prevents it from vibrating or moving during drilling.
2. Mark the Hole: Use a center punch to create a small indentation at the drilling point. This helps guide the bit and prevent it from wandering.
3. Apply Cutting Oil: Apply a generous amount of cutting oil to the drilling area. This reduces friction, dissipates heat, and extends the life of the bit.
4. Start Drilling Slowly: Begin drilling at a slow speed. Applying too much pressure or drilling too quickly can cause the bit to grab or the metal to deform.
5. Maintain Consistent Pressure: Use steady, even pressure as you drill. Let the bit do the work. Avoid forcing the bit.
6. Monitor Hole Size: Watch the steps on the bit to make sure you’re drilling to the correct diameter. Stop when you reach the desired size.
7. Deburr (if needed): Although step drills often deburr as they drill, you can use a deburring tool to remove any sharp edges.

I’ve worked on several projects with thin aluminum and steel, and step drills have always been my go-to choice. They provide clean results, save time, and reduce the chance of messing up the material. I remember one time when I was building a custom computer case out of aluminum sheet metal⁹. The step drill made it easy to create clean holes¹⁰ for fans, ports, and other components.

Conclusion

Step drills are great for drilling different sized holes in thin materials. They are versatile and can save you time on many projects.
