18mm SDS Drill Bit

Sand Blasted SDS Plus Drill Bits Rotary Hammer Drill Bits with S4 Flute for Brick Stone Concrete Carbide Tipped

Product Description

Product Name	Sand Blasted SDS Plus Drill Bits Rotary Hammer Drill Bits with S4 Flute for Brick Stone Concrete Carbide Tipped
Body Material	40Cr Steel with Heat Treatment
Tip Material	Tungsten Carbide
Process	Milled Flutes and Welded Tip

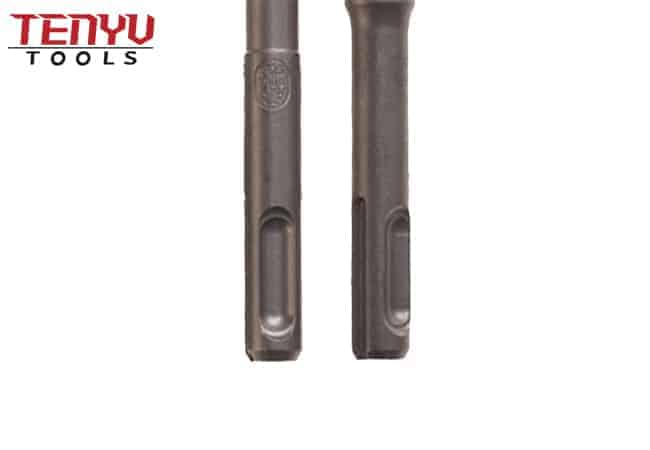

Shank	SDS-Plus shank (We Also Have SDS-Max shank, Hex shank, SDS Tapcon shank, Spline shank)
Tip Type	Single tip (We Also Have Centric tip, Cross head, X head)
Flute Type	S4 Flute (We Also Have U Flute and L Flute)
Size	4110mm – 401200mm (5/32′ * 4″ to 1 3/4′ * 40″)
Surface Finish	Sand Blasted
Package	One Piece in One PVC Pouch or Plastic Hanger or PVC Tube or PVC Double Blister

Product Size
Diameter	Flute Length	Overall Length	Diameter	Flute Length	Overall Length
mm	mm	mm	Inch	Inch	Inch
4.0-10.0	50	110	5/32″-3/8″	2″	4″
4.0-16.0	100	160	5/32″-5/8″	4″	6″
5.0-26.0	150	210	3/16″-1″	6″	8″
6.0-26.0	200	260	1/4″-1″	8″	10″
6.0-26.0	250	310	1/4″-1″	10″	12″
6.0-26.0	290	350	1/4″-1″	12″	14″
6.0-26.0	350	410	1/4″-1″	10″	12″
8.0-30.0	390	450	5/16″-1-1/8″	12″	14″
8.0-30.0	540	600	5/16″-1-1/8″	14″	16″
10.0-30.0	740	800	3/8″-1-1/8″	16″	18″
10.0-30.0	940	1000	3/8″-1-1/8″	22″	24″
10.0-40.0	1140	1200	3/8″-1-3/4″	24″	26″
* Custom-tailor would be available against customers’ requirements
