Hss Metal Drill Bits

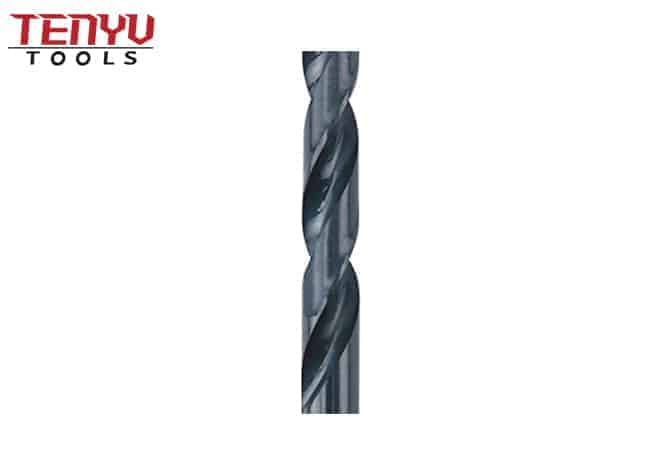

Metal Drilling HSS Metal Drill Bit Black Oxide

HSS metal drill bits are hard-wearing
Black Oxide is 50% longer life than other drill bits
135 degree split-point can prevent walking when drilling
Universal round shank

Product Details
Factory
Material

Product Description
More Choice For You: Home > HSS Drill Bit
Product Name	Round Shank Auger Drill Bit Specification M2 HSS 6542 with Drill Bits Sizes 1/16″ – 1″
Material	M2 HSS 6542 ( M35 HSS-E HSS-Co5% )
Process	Fully Ground (Also have Rolled & Polshed, Rolled, Milled)
Standard	DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869, Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available) Jobber Length (Also have Stub Screw Machine Length, Long Taper Length, Aircraft Extension, Extra Long 12″, 18″, 24″, Silver & Deming 1/2″ Reduced Shank)
Size	1/16″ – 1″ (0.5mm-25mm)
Point Type	135 Degree Split Point (Also have 118 Degree Regular Point, Turbo Max Point, Pilot Point)
Shank Type	Straight Shank (Also have Tri-Flats Shank, Hex Shank, Double R Hex Shank, Reduced Shank, Threaded Hex Shank, Taper Shank )
Helix Angle	Regular Spiral Type N (Also have Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral)
Web & Flute Type	Regular Web & Flute (Also have Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute)
Surface Finish	Black Oxide (Also have Bright, Amber Color, Black & Gold, Titanium, Black & Bright)
Package	10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell
Features	1.M2 drill bits are more expensive than other drill bits, but drilling in stainless steel, long life, best choose 2.No need center punch, 135 ° split-point drills on contact and prevents walking 3. Precision ground point, flutes, body, clearance, and drill diameter for the ultimate in accuracy and performance 4. Ground flutes provide fast chip to remove maximize, efficiency along the full working surface of the bit

Product Size
DIN338
Diameter(mm)	Flute Length(mm)	Overall Length(mm)	Diameter(mm)	Flute Length(mm)	Overall Length(mm)
0.5	6	22	9.5	81	125
1.0	12	34	10.0	87	133
1.5	20	43	10.5	87	133
2.0	24	49	11.0	94	142
2.5	30	57	11.5	94	142
3.0	33	61	12.0	101	151
3.2	36	65	12.5	101	151
3.5	39	70	13.0	101	151
4.0	43	75	13.5	108	160
4.2	43	75	14.0	108	160
4.5	47	80	14.5	114	169
4.8	52	86	15.0	114	169
5.0	52	86	15.5	120	178
5.2	52	86	16.0	120	178
5.5	57	93	16.5	125	184
6.0	57	93	17.0	125	184
6.5	63	101	17.5	130	191
7.0	69	109	18.0	130	191
7.5	69	109	18.5	135	198
8.0	75	117	19.0	135	198
8.5	75	117	19.5	140	205
9.0	81	125	20.0	140	205
Jobber Length Fraction
Diameter (Inch)	Flute Length(Inch)	Overall Length(mm)	Diameter (Inch)	Flute Length(Inch)	Overall Length(mm)
3/64″	3/4″	1-3/4″	25/64″	3-3/4″	5-1/8″
1/16″	7/8″	1-7/8″	13/32″	3-7/8″	5-1/4″
5/64″	1″	2″	27/64″	3-15/16″	5-3/8″
3/32″	1-1/8″	2-1/4″	7/16″	4-1/16″	5-1/2″
7/64″	1-1/2″	2-5/8″	29/64″	4-3/16″	5-5/8″
1/8″	1-5/8″	2-3/4″	15/32″	4-5/16″	5-3/4″
9/64″	1-3/4″	2-7/8″	31/64″	4-3/8″	5-7/8″
5/32″	2″	3-1/8″	1/2″	4-1/2″	6″
11/64″	2-1/8″	3-1/4″	33/64″	4-13/16″	6-5/8″
3/16″	2-5/16″	3-1/2″	17/32″	4-13/16″	6-5/8″
13/64″	2-7/16″	3-5/8″	35/64″	4-13/16″	6-5/8″
7/32″	2-1/2″	3-3/4″	9/16″	4-13/16″	6-5/8″
15/64″	2-5/8″	3-7/8″	37/64″	4-13/16″	6-5/8″
1/4″	2-3/4″	4″	19/32″	5-3/16″	7-1/8″
17/64″	2-7/8″	4-1/8″	39/64″	5-3/16″	7-1/8″
9/32″	2-15/16″	4-1/4″	5/8″	5-3/16″	7-1/8″
19/64″	3-1/16″	4-3/8″	41/64″	5-3/16″	7-1/8″
5/16″	3-3/16″	4-1/2″	21/32″	5-3/16″	7-1/8″
21/64″	3-5/16″	4-5/8″	43/64″	5-5/8″	7-5/8″
11/32″	3-7/16″	4-3/4″	11/16″	5-5/8″	7-5/8″
23/64″	3-1/2″	4-7/8″
3/8″	3-5/8″	5″
Jobber Length Number
Diameter	Flute Length(Inch)	Overall Length(mm)	Diameter	Flute Length(Inch)	Overall Length(mm)
1#	2-5/8″	3-7/8″	31″	1-5/8″	2-3/4″
2#	2-5/8″	3-7/8″	32″	1-5/8″	2-3/4″
3#	2-1/2″	3-3/4″	33″	1-1/2″	2-5/8″
4#	2-1/2″	3-3/4″	34″	1-1/2″	2-5/8″
5#	2-1/2″	3-3/4″	35″	1-1/2″	2-5/8″
6#	2-1/2″	3-3/4″	36″	1-7/16″	2-1/2″
7#	2-7/16″	3-5/8″	37″	1-7/16″	2-1/2″
8#	2-7/16″	3-5/8″	38″	1-7/16″	2-1/2″
9#	2-7/16″	3-5/8″	39″	1-3/8″	2-3/8″
10#	2-7/16″	3-5/8″	40″	1-3/8″	2-3/8″
11#	2-5/16″	3-1/2″	41″	1-3/8″	2-3/8″
12#	2-5/16″	3-1/2″	42″	1-1/4″	2-1/4″
13#	2-5/16″	3-1/2″	43″	1-1/4″	2-1/4″
14#	2-3/16″	3-3/8″	44″	1-1/8″	2-1/8″
15#	2-3/16″	3-3/8″	45″	1-1/8″	2-1/8″
16#	2-3/16″	3-3/8″	46″	1-1/8″	2-1/8″
17#	2-3/16″	3-3/8″	47″	1″	2″
18#	2-1/8″	3-1/4″	48″	1″	2″
19#	2-1/8″	3-1/4″	49″	1″	2″
20#	2-1/8″	3-1/4″	50″	1″	2″
21#	2-1/8″	3-1/4″	51″	1″	2″
22#	2″	3-1/8″	52″	7/8″	1-7/8″
23#	2″	3-1/8″	53″	7/8″	1-7/8″
24#	2″	3-1/8″	54″	7/8″	1-7/8″
25#	1-7/8″	3″	55″	7/8″	1-7/8″
26#	1-7/8″	3″	56″	3/4″	1-3/4″
27#	1-7/8″	3″	57″	3/4″	1-3/4″
28#	1-3/4″	2-7/8″	58″	11/16″	1-5/8″
29#	1-3/4″	2-7/8″	59″	11/16″	1-5/8″
30#	1-5/8″	2-3/4″	60″	11/16″	1-5/8″
Jobber Length Letter
Diameter	Flute Length(Inch)	Overall Length(mm)	Diameter (Inch)	Flute Length(Inch)	Overall Length(mm)
A	2-5/8″	3-7/8″	N	3-1/16″	4-3/8″
B	2-3/4″	4″	O	4-1/2″	4-1/2″
C	2-3/4″	4″	P	4-5/8″	4-5/8″
D	2-3/4″	4″	Q	4-3/4″	4-3/4″
E	2-3/4″	4″	R	4-3/4″	4-3/4″
F	2-7/8″	4-1/8″	S	4-7/8″	4-7/8″
G	2-7/8″	4-1/8″	T	4-7/8″	4-7/8″
H	2-7/8″	4-1/8″	U	5″	5″
I	2-7/8″	4-1/8″	V	3-5/8″	5″
J	2-7/8″	4-1/8″	W	3-3/4″	5-1/8″
K	2-15/16″	4-1/4″	X	3-3/4″	5-1/8″
L	2-15/16″	4-1/4″	Y	3-7/8″	5-1/4″
M	3-1/16″	4-3/8″	Z	3-7/8″	5-1/4″
* Custom-tailor would be available against customers’ requirements

Factory

HSS M2 metal drill bits are used to drill on the stainless steel, aluminum, iron, cast iron, sintered iron, 135 degree split-point no need punch tool to find the center point and it can prevent walking when you drill on the metal. The black oxide coating is 50% longer life than other hss drill bits. Round shank can be used for drill stands and drill drivers. Ground flutes provide fast chip to remove maximize, efficiency along the full working surface of the bit. Drill on the metal, we recommend you hss drill bits.

Material: M2 HSS 6542
Surface: Black Oxide
Use: Metal Drilling

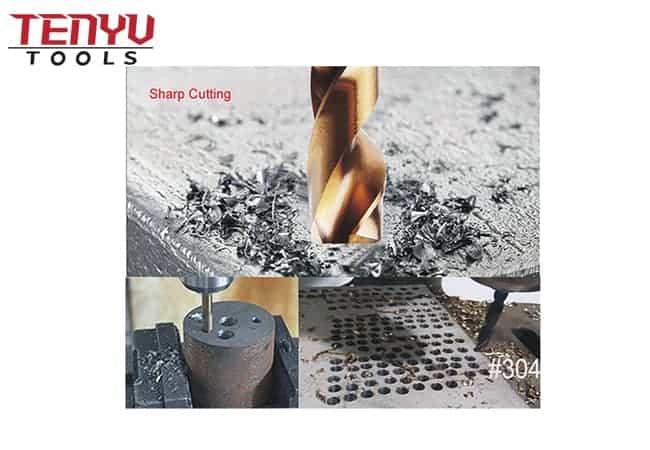

HSS metal Drill Bits can drill on stainless steel, aluminum, iron, cast iron, sintered iron.

Ground Flutes can fast chip to remove maximize. When drilling, can dissipate heat very well!

M2 High Speed Steel (HSS) 6542
