40mm Flat Wood Drill Bit
Black Oxided Tri-Point Flat Wood Spade Drill Bit with Contoured Spurs for Wood Drilling
- Made of carbon steel, high hardness, and long durability
- Spade bits use double-cutting spurs that scribe the outside of the hole, reducing breakout.
- The flat drill bit design features a large shank for added durability.
- Grooved hex shank helps prevent slipping in the drill chuck or bit extension.
- Can work well with electric drill and drill bench.
- Product Details
- Factory
- Material
|
Product Description
|
||||
|
More Choice For You: Home > Wood Drill Bit
|
||||
|
Product Name
|
Black Oxided Tri-Point Flat Wood Spade Drill Bit with Contoured Spurs for Wood Drilling
|
|||
|
Material
|
High Carbon Steel with Heat Treatment
|
|||
|

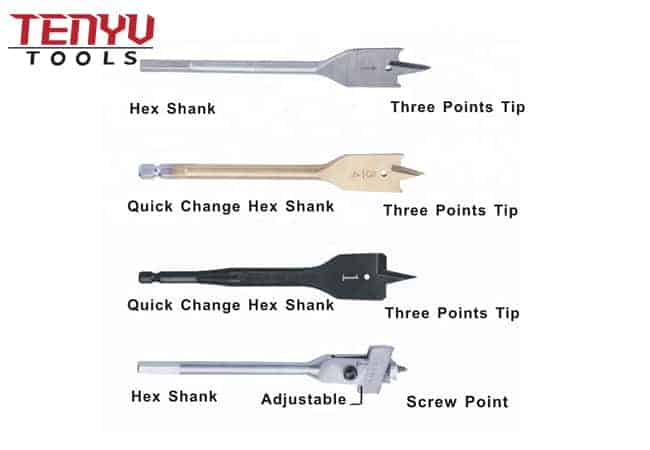

Shank Type
|
Hex Shank (We Also Have Quick Change Hex Shank)
|
|||
|
Head Tip
|
Tri-Point (We Also Have Center Point, Tri-Point with Cutting Groove)
|
|||
|
Surface Finish
|
Black Oxide (We Also Have Titanium Coated, Bright)
|
|||
|
Package
|
One Piece in One PVC Pouch or PVC Skin Card or Paper Sandwich or PVC Double Blister
|
|||
| Product Size | |||||||||||||
| Overall Length | 101mm/152mm/304mm/406mm | ||||||||||||
| Diameter | mm | 6 | 8 | 10 | 11 | 12 | 13 | 14 | 16 | 18 | 19 | 20 | 22 |
| 24 | 25 | 26 | 28 | 30 | 32 | 34 | 35 | 36 | 38 | 40 | |||
| Overall Length | 4″/6″/12″/16″ | ||||||||||||
| Diameter | Inch | 1/4″ | 5/16″ | 3/8″ | 7/16″ | / | 1/2″ | 9/16″ | 5/8″ | 11/16″ | 3/4″ | 13/16″ | 7/8″ |
| 15/16″ | 1″ | / | 1-1/8″ | 1-3/16″ | 1-1/4″ | / | 1-3/8″ | / | 1-1/2″ | 1-9/16″ | |||
| * Custom-tailor would be available against customers’ requirements | |||||||||||||
1. Expert Quality, manufactured from 45#special carbon steel hardened and tempered.
2. Full-length heat treatment guards against bending bit in heavy-duty applications.
3. The precision ground central point with optimized design for faster cutting performance.
4. Hex shank provides better chuck grip and reduces slippage.
5. Designed to perform fast, clean cuts, will bore all types of timber and are equally efficient when drilling with or against the grain.
6. Hang hole allows for bit storage & wire pulling.
How to Use:
■ Follow carefully the instructions given in the machine handbook.
■ Never fit a diamond dish/cup wheel which is too loose or too tight on the flange.
■ Tighten only with the tool supplied with the machine.
■ Ensure the wheel is properly gripped to prevent slippage, but do not tighten with excessive force. Never use a hammer.
■ Keep flanges and screw threads clean and free of burrs and rust.
■ Replace distorted or damaged flanges before fitting the wheel.
For your Safety:
We recommends the use of following personal protective equipment:
■ Eye protection
■ Ear protection (ear sets)
■ Hand protection (gloves)
■ Lung protection (dust mask, also called respirator)
Important Note:
Never remove the protective machine guard and make sure it is properly adjusted to deflect debris away from you.
Ensure that no other person is at risk, especially near the machine while working.
