Counter Sinking Bit

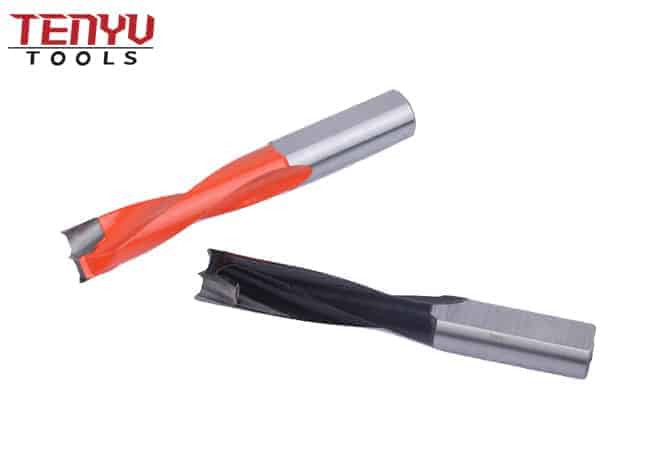

Countersink Row Drill Bit End Mill Brad Point Boring Bit Woodworking Router Bits for Chipboards

  • Slice smoothly into stock producing clean, splinter-free, precise, smooth, no burr edges.
  • Durable and long service life.
  • Beautiful, anti-rust, and anti-corrosion.
  • Work well for solid wood, hardwood, plywood, MDF, chipboard, etc.
  • Use on automatic and manual muti-spindle boring machines.
  • Product Details
  • Factory
  • Material
Product Description
Product Name
Countersink Row Drill Bit End Mill Brad Point Boring Bit Woodworking Router Bits for Chipboards
Material
Tungsten Carbide
Color
Red or black
Usage For solid wood, hardwood, plywood, MDF, chipboard
Total Size 57mm or 70mm

Brad point drill bits Features:
1. Imported amicron tungsten carbide from Luxemburg.
2. Suitable for drilling wood, PVC and plastic.
3. Super abrasion, high precision,light cutting and no burrs around hole side.
4. The edge part formed in one piece by the full automatic digital control Grinder.
5. Concentricity of drill is below 0.01mm.
6. Excellent effect for hard boards such as melamine panels.
7. New edge angle makes bore smooth, no chipping.
8. Brad point drill bits makes longer life.
9. Customer design offered.
Application:
1.portable boring machine.
2.automatic boring machine.
3.adjustable drill bit for cnc machine center.
4.for chip free drilling of dowel holes in solid wood and wood-based panels.

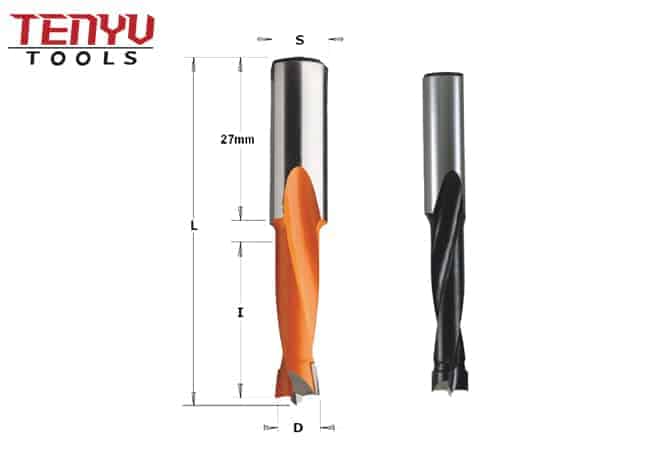

Product Size
Total Length: 57mm Total Length: 70mm
Diameter of Edge Diameter of Handle Diameter of Edge Diameter of Handle
mm mm mm mm
3 10 3 10
4 10 4 10
5 10 5 10
5.5 10 5.5 10
6 10 6 10
6.5 10 6.5 10
7 10 7 10
8 10 8 10
9 10 9 10
9.8 10 9.8 10
10 10 10 10
10.2 10 10.2 10
11 10 11 10
12 10 12 10
13 10 13 10
14 10 14 10
15 10 15 10
16 10 16 10
* Custom-tailor would be available against customers’ requirements
